Middle clamp with pin - silver

zł1.93 tax excl.
zł2.37 tax incl.

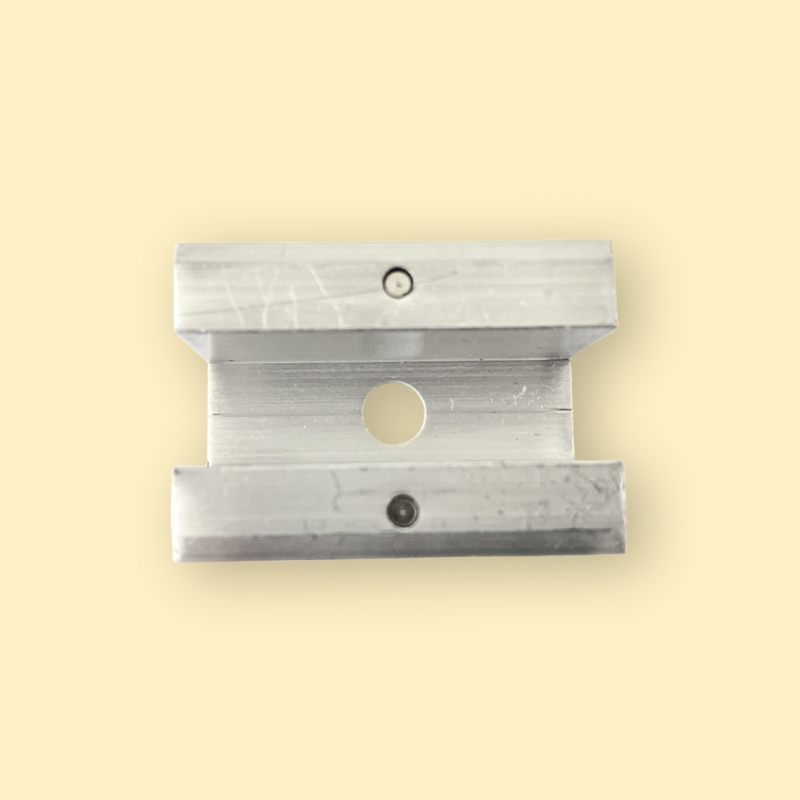

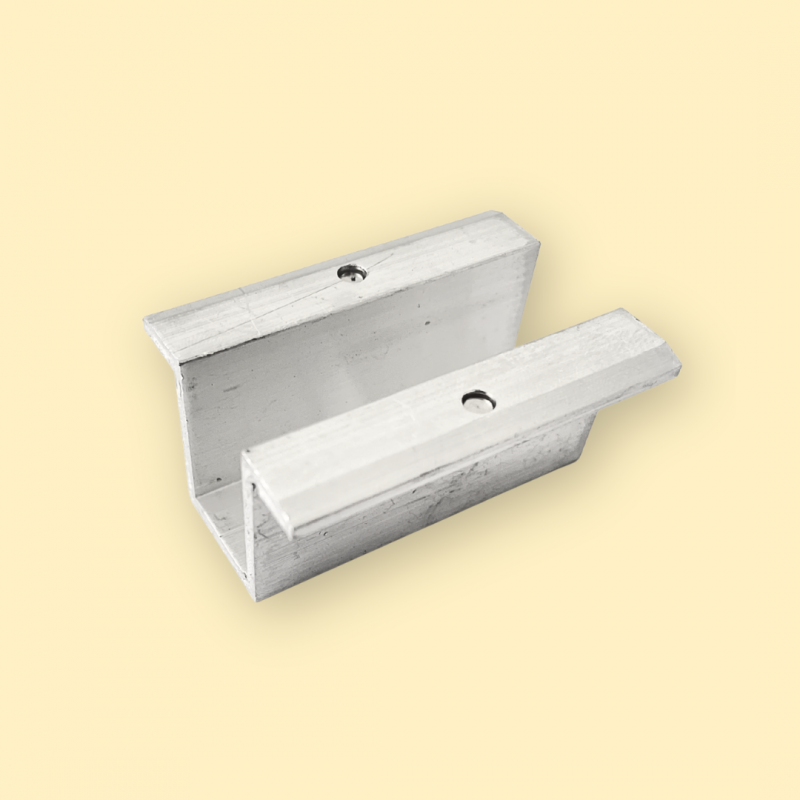

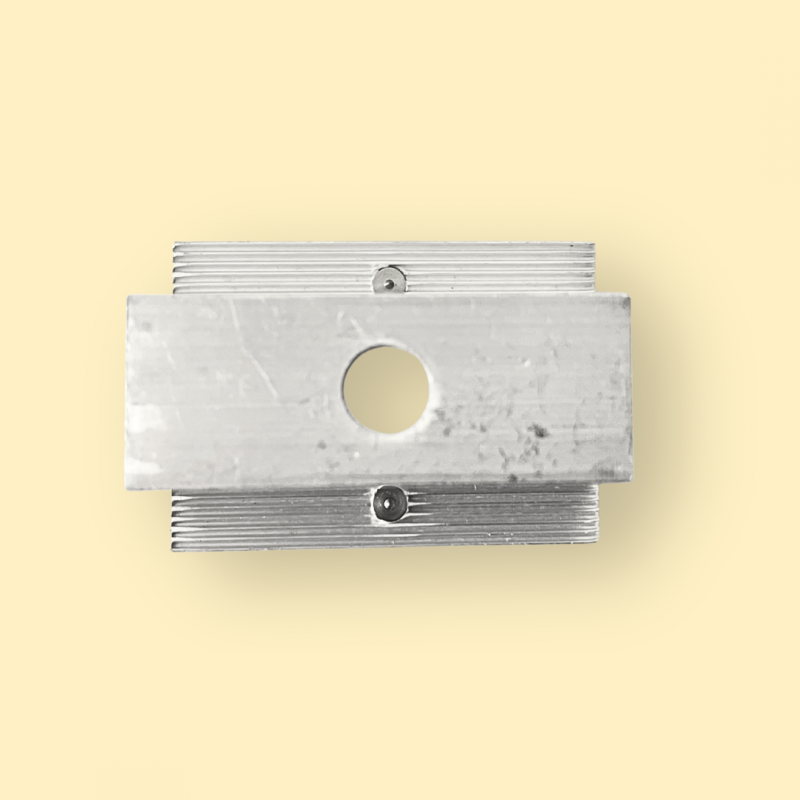

Pressure Clamp from Aluminum 6060, 25 mm, M8 Hole for M8 Screw – For Photovoltaic Modules

The 25 mm pressure clamp with an M8 hole for an M8 screw is an innovative solution supporting the installation of lightning protection and surge protection, especially useful in photovoltaic systems.

This is a key mounting element used to secure the photovoltaic panel to the aluminum structural profile, ensuring stable installation on both flat and pitched roofs.

Thanks to the built-in grounding pins on both sides, the clamp allows for effective potential equalization between photovoltaic modules by breaking through the anodized layer during tightening. This solution eliminates the need for additional grounding washers, reducing installation time while providing high safety and efficiency for the system.

Made from high-quality aluminum 6060, the pressure clamp offers exceptional resistance to weather conditions. Additionally, there is an anodized black version available, which not only enhances the aesthetic appeal but also increases the element's durability and resistance to external factors.

The clamp is versatile and compatible with the following mounting profiles:

Aluminum profiles for hexagonal screws

Aluminum profiles for T bolts

Trapezoidal profiles for roofs covered with trapezoidal sheet metal

PV-04-09
