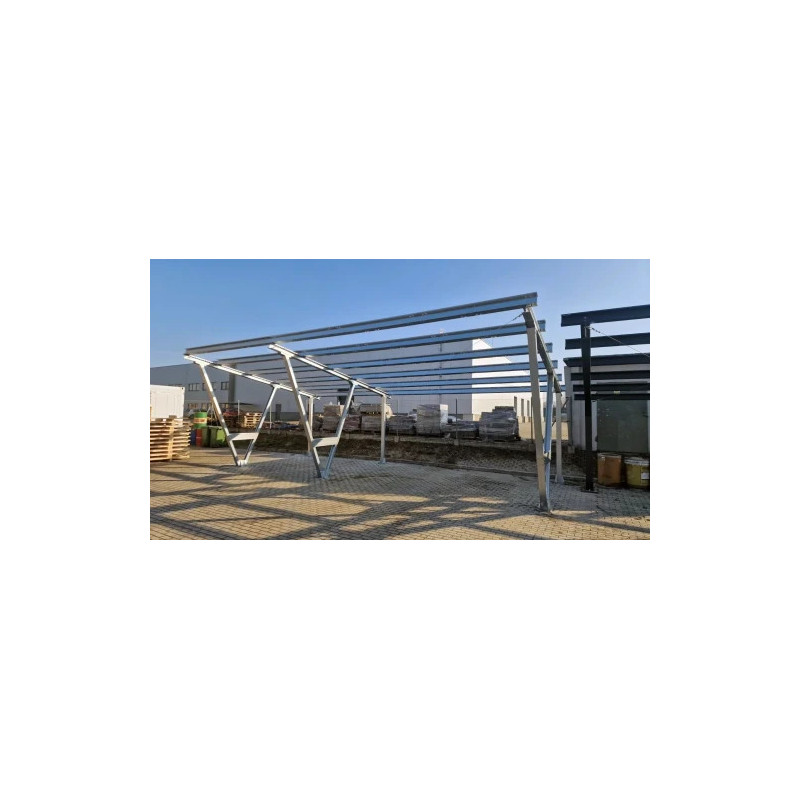

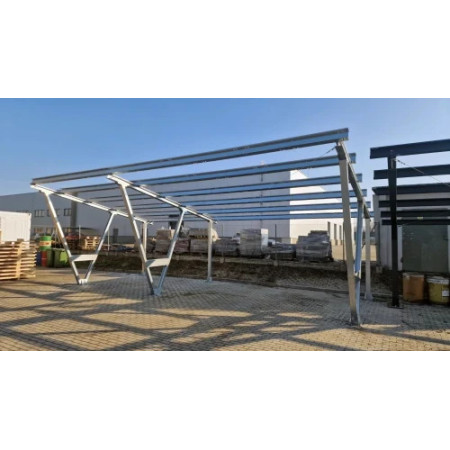

VICA 2 + 1 Carport – Asymmetrical Photovoltaic Carport for 3 Parking Spaces with 24 PV Panels

The VICA 2 + 1 asymmetrical carport is a photovoltaic structure designed to cover 3 parking spaces and accommodate 24 PV panels within one continuous structure. It combines vehicle shelter with the generation of solar electricity in a single, cohesive installation.

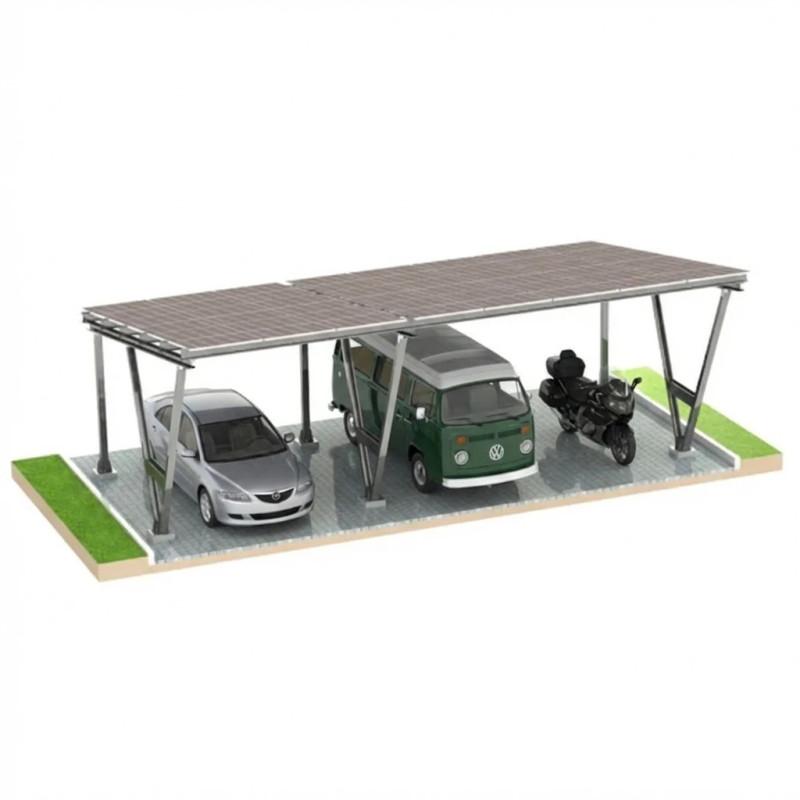

This model is suitable for households with two cars plus a scooter, motorcycle or trailer; farms with a mixed vehicle fleet; and businesses operating two passenger cars and one delivery vehicle.

One structure allows for a single photovoltaic installation with a capacity of 9–12 kWp, creating a consistent visual appearance across the entire parking area. It can also simplify project planning and reduce costs compared with carrying out several separate installation projects.

Logistics and Delivery

The structural kit weighs approximately 1153 kg and is delivered by pallet transport to the specified address, either directly to the customer or to the construction site.

• Kit weight: approx. 1153 kg

• Delivery method: pallet transport

• Invoice: sent by email after dispatch

• Technical documentation: supplied with the structure

The asymmetrical layout requires careful foundation planning. The uneven distribution of loads transferred from the roof must be taken into account, particularly in mountainous locations where snow loads are especially important. These considerations are incorporated into the design and shown in the DXF drawings supplied with the structure.

Structural Strength and Load Parameters

The structure has been designed to withstand the following loads:

• Wind speed: up to 28 m/s (100.8 km/h)

• Snow load: up to 1.4 kN/m² (approx. 143 kg/m²)

These values cover most locations in Poland and EU countries, excluding high-mountain areas and immediate coastal strips.

The structure meets execution class EXC2 requirements. This is confirmed by the EN 1090-1 certificate supplied with the product.

Detailed Technical Specifications

The following specifications cover the key dimensions, materials and design parameters required for installation planning, commercial quotations or consultation with a design office.

Structural Material and Corrosion Protection

The structure is manufactured from S350GD steel profiles with a minimum yield strength of 350 MPa. The profiles are protected on both sides with a Magnelis ZM310 coating manufactured by ArcelorMittal.

The coating contains zinc, 3.5% aluminium and 3% magnesium. The magnesium content supports a self-healing mechanism at edges created during cutting.

Magnelis is stated to provide approximately 3 times the corrosion resistance of conventional hot-dip galvanizing. The coating performs well in chloride-rich environments, such as areas exposed to road salt and coastal atmospheres, as well as in ammonia-rich environments, including farms and livestock facilities.

The fasteners are made of A2-70 stainless steel. The selection of materials and protective coatings is intended to support long-term use with reduced maintenance requirements.

Applicable Standards

• EN 1090-1, EN 1090-2, EN 1090-4 – execution of steel and aluminium structures

• PN-EN 1991-1-3 (Eurocode 1) – snow loads

• PN-EN 1991-1-4 (Eurocode 1) – wind loads

• PN-EN 1993-1-8 (Eurocode 3) – design of steel joints

• ISO 9001 – quality management system

What Is Included in the VICA 2 + 1 Kit?

The kit includes the main structural components and documentation required for assembly:

• Complete set of steel profiles: columns, beams and longitudinal members for the asymmetrical 2 + 1 variant

• 24 sets of adjustable side clamps for mounting PV panels

• Complete set of A2-70 stainless steel fasteners

• Illustrated step-by-step assembly instructions

• Complete design documentation, including DXF drawings, EN 1090-1 and ISO 9001 certificates, and GPSR documentation

Items Purchased Separately

The following components must be purchased separately to complete the photovoltaic installation:

• PV panels – up to 24 units, maximum dimensions 1140 × 1950 mm, thickness 30–40 mm

• Inverter and optional power optimizers

• DC cabling, MC4 connectors and protective devices in accordance with the installation design

• AC equipment, including a switch-disconnector, surge protection device and residual-current protection devices

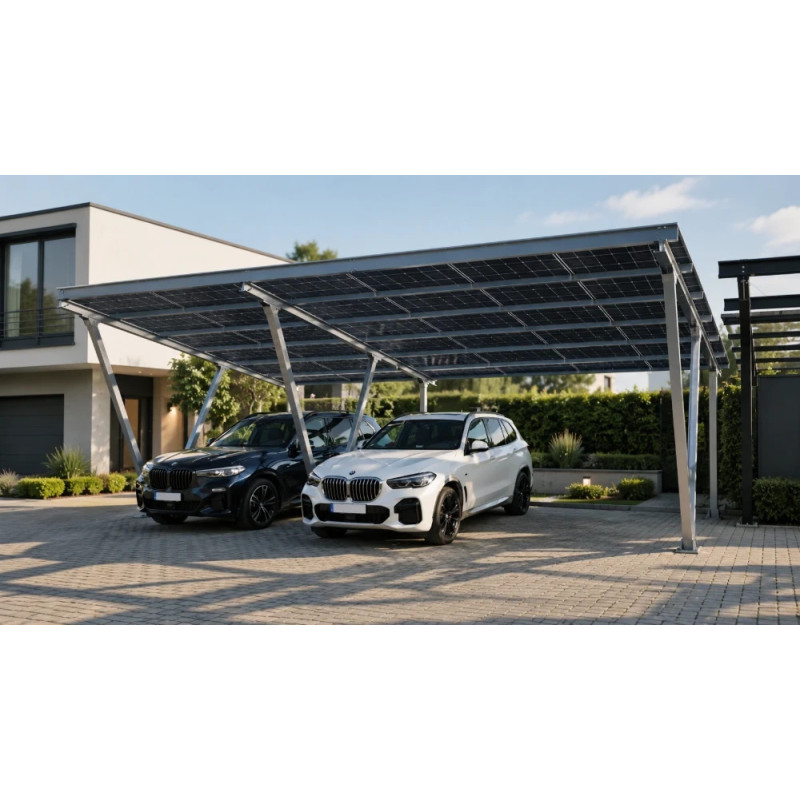

VICA 2 + 1 Carport – Functional Shelter with Photovoltaic Integration

The VICA 2 + 1 asymmetrical carport is designed for users who need covered parking for three vehicles and want to use the roof area for a photovoltaic installation. The structure accommodates 24 PV panels, enabling an installation with a capacity of 9–12 kWp.

The combination of S350GD steel, Magnelis ZM310 coating and A2-70 stainless steel fasteners creates a structure intended for residential, agricultural and commercial applications.
