VICA 4x2 Carport – Photovoltaic Carport for 8 Cars with 60 PV Panels

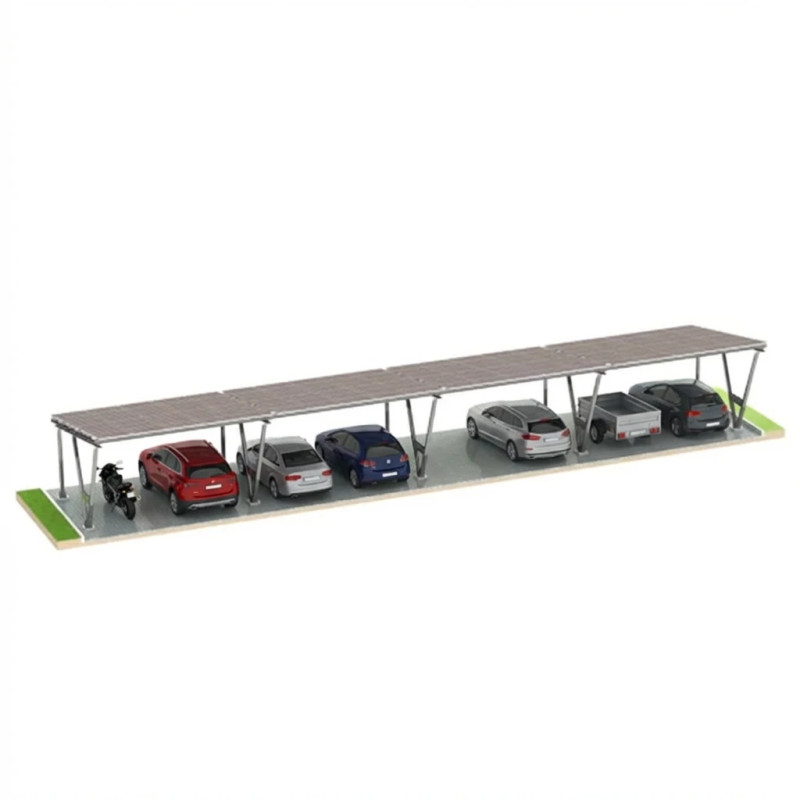

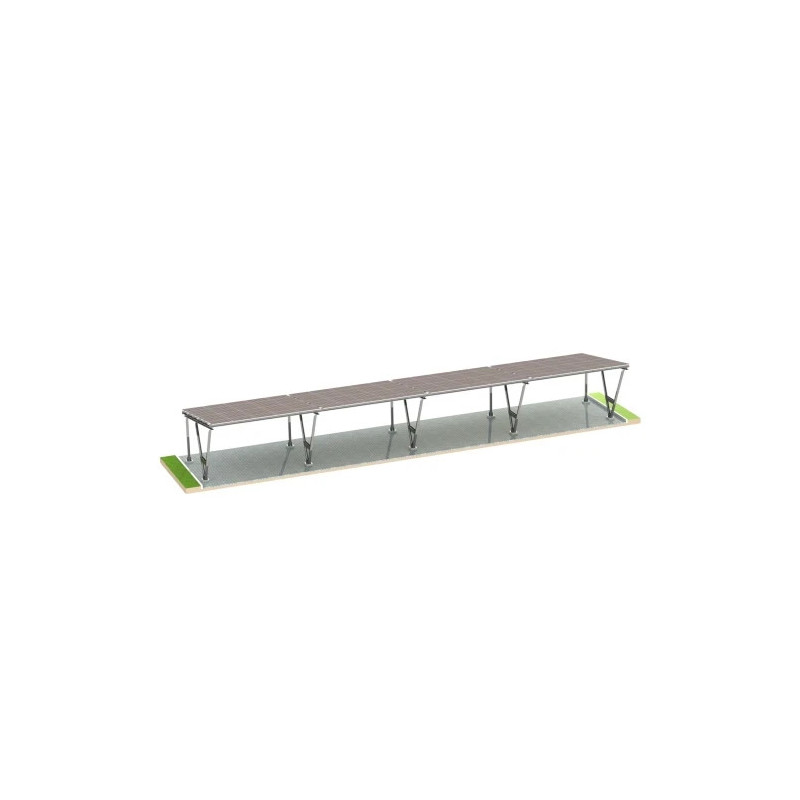

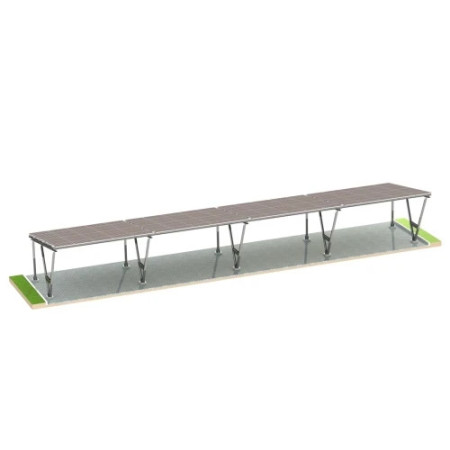

The VICA 4x2 Carport is a VICA structure designed to accommodate 8 parking spaces and support the installation of 60 PV panels. All parking spaces are arranged within one continuous structure, creating a unified parking area integrated with a photovoltaic installation.

The carport is suitable for company parking lots, corporate vehicle fleets, medium-sized hotels and large residential communities. A single structure allows for a PV installation capacity of 24–30 kWp, combining vehicle shelter with solar electricity generation and reducing the need for separate construction projects.

Logistics and Delivery

• Kit weight: approx. 2644 kg

• Delivery: pallet transport to the specified address, directly to the customer or construction site

• Invoice: sent by email after dispatch

• Technical documentation: supplied with the structure

For a carport covering 8 parking spaces, proper ground preparation is particularly important. The documentation includes construction drawings for pad foundations. For industrial and commercial buildings, a geotechnical soil assessment is often carried out before installation.

Structural Strength and Load Parameters

The structure is designed to withstand the following loads:

• Wind speed: up to 28 m/s (100.8 km/h)

• Snow load: up to 1.6 kN/m² (approximately 163 kg/m²)

These parameters cover most locations in Poland and EU countries, excluding high-mountain areas and immediate coastal strips.

The structure is manufactured in execution class EXC2, confirmed by the EN 1090-1 certificate supplied with the structure.

Technical Specifications

Materials and Corrosion Protection

The structure is manufactured from S350GD steel profiles with a minimum yield strength of 350 MPa.

The steel is protected with a double-sided Magnelis ZM310 coating containing zinc, 3.5% aluminium and 3% magnesium, manufactured by ArcelorMittal.

Magnelis is claimed to provide approximately 3 times the corrosion resistance of conventional hot-dip galvanizing. The magnesium content supports a self-healing mechanism at cut edges.

The coating performs well in chloride-rich environments, such as areas exposed to road salt or coastal atmospheres, as well as in ammonia-rich environments, including farms and livestock facilities.

The fasteners are made of A2-70 stainless steel. The structure is designed for decades of use with reduced maintenance requirements.

Applicable Standards

• EN 1090-1, EN 1090-2, EN 1090-4 – execution of steel and aluminium structures

• PN-EN 1991-1-3 (Eurocode 1) – snow loads

• PN-EN 1991-1-4 (Eurocode 1) – wind loads

• PN-EN 1993-1-8 (Eurocode 3) – design of steel joints

• ISO 9001 – quality management system

What Is Included in the VICA 4x2 Kit?

• Complete set of steel profiles: columns, beams and longitudinal members

• 60 sets of adjustable side clamps for PV panels

• Complete set of A2-70 stainless steel fasteners

• Illustrated assembly instructions

• Full design documentation: DXF drawings, EN 1090-1 and ISO 9001 certificates, and GPSR documentation

Items Purchased Separately

• PV panels, up to 60 units, with maximum dimensions of 1140 × 1950 mm and a thickness of 30–40 mm

• Inverter and, optionally, power optimizers

• DC wiring, MC4 connectors and protective devices in accordance with the design

• AC equipment: switch-disconnector, surge protection device and residual-current protection devices

VICA 4x2 Carport – A Practical Solution for Commercial and Residential Properties

The VICA 4x2 Carport is a solution for companies, hotels and large residential communities looking to combine covered parking for eight vehicles with the possibility of generating electricity from solar energy.

The structure made of S350GD steel, the Magnelis ZM310 coating and A2-70 stainless steel fasteners create a system designed for commercial, residential and business applications.
