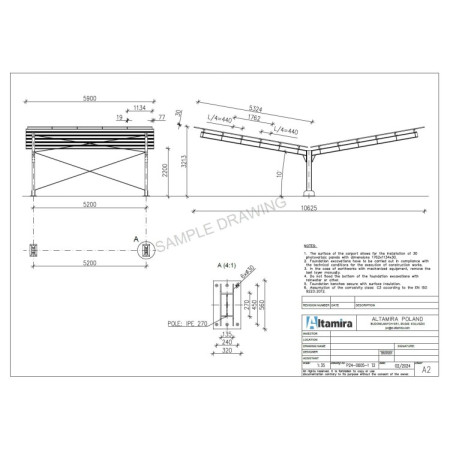

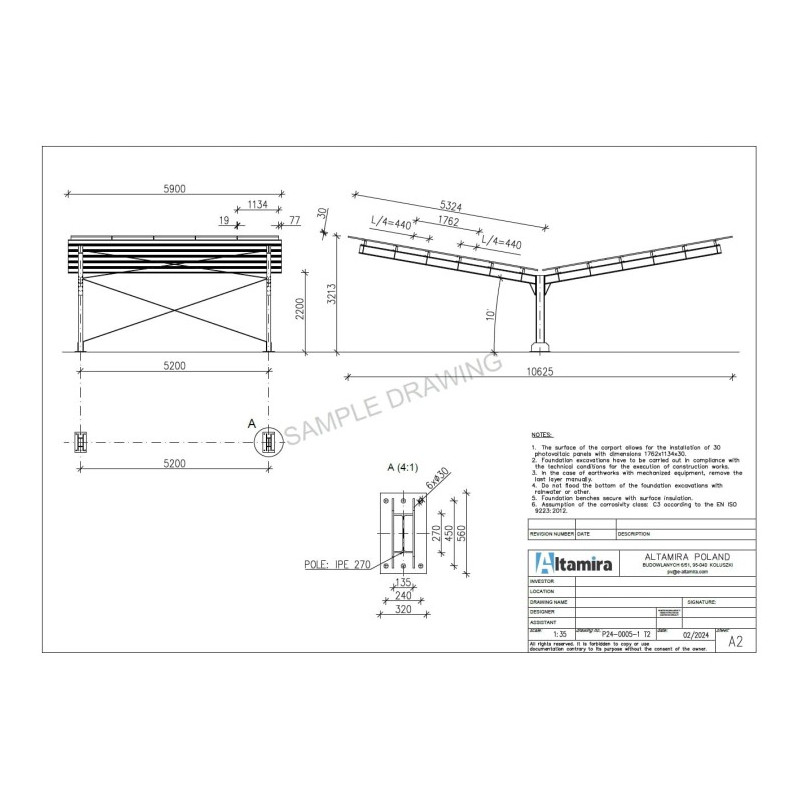

PV Carport T 11.4 m × 5.2 m

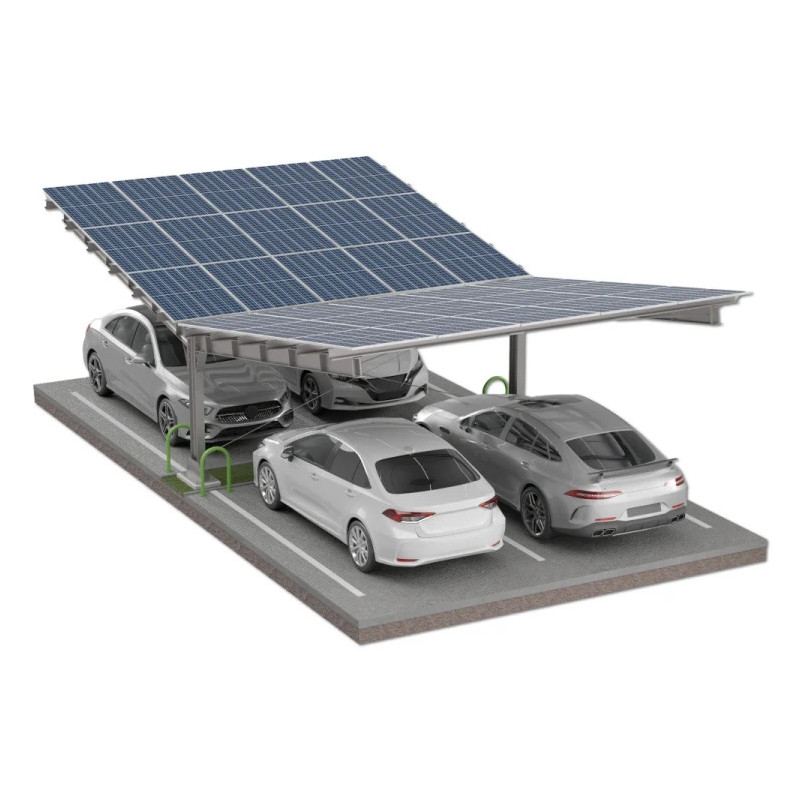

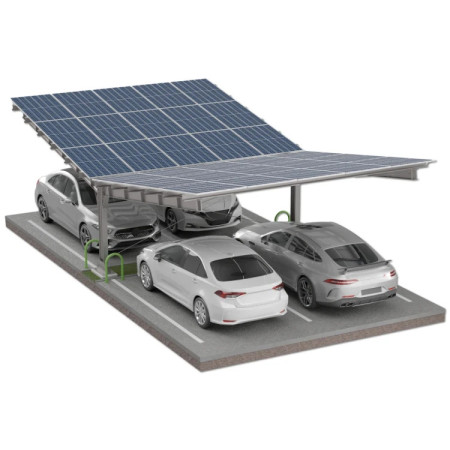

Photovoltaic Carport for Four Cars

The PV Carport T, measuring 11.4 m × 5.2 m, is a modern solution designed to accommodate four cars. It is suitable for both private and commercial parking areas where efficient use of available space and the potential to generate renewable energy are important.

The structure combines practical functionality with a contemporary design. It helps protect vehicles from adverse weather conditions, including sunlight, rain and snow. At the same time, it allows photovoltaic panels to be installed, enabling the parking area to be used for generating clean electricity.

The carport is manufactured from S275JR hot-rolled steel. To improve corrosion resistance, the structure can be protected by hot-dip galvanizing or by applying a Magnelis® ZM310 coating. These solutions help ensure durability and resistance to external conditions. The manufacturer provides a 25-year warranty on the structure and the Magnelis® coating.

Choosing a photovoltaic carport allows you to combine functional parking for four cars with the opportunity to harness solar energy. It is a practical option for individuals and businesses seeking modern parking solutions.

Key Benefits

• Parking space for 4 cars.

• Capacity for installing 30 photovoltaic panels.

• Compatible with panels measuring 1903 × 1134 × 30 mm.

• Potential to use the parking area for electricity generation.

• Quick and cost-effective installation.

• Structure made of S275JR hot-rolled steel.

• Corrosion protection through hot-dip galvanizing or Magnelis® ZM310 coating.

• Protection for vehicles against weather conditions.

Scope of Supply

The offer includes the carport structure only. Photovoltaic panels, impact barriers, the sealing system and guttering are not included.

Technical Specifications

• Model: T

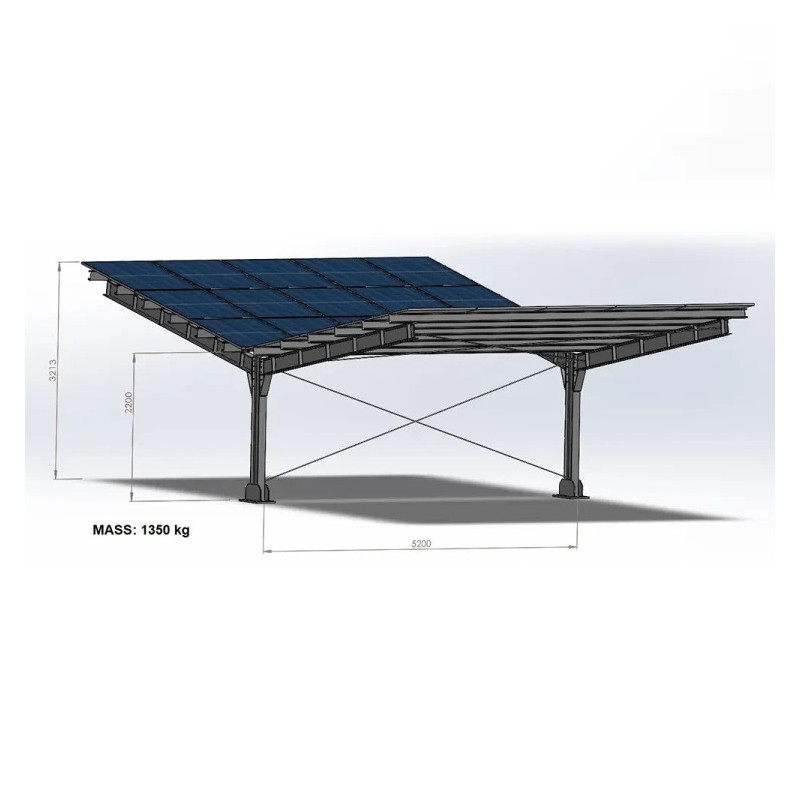

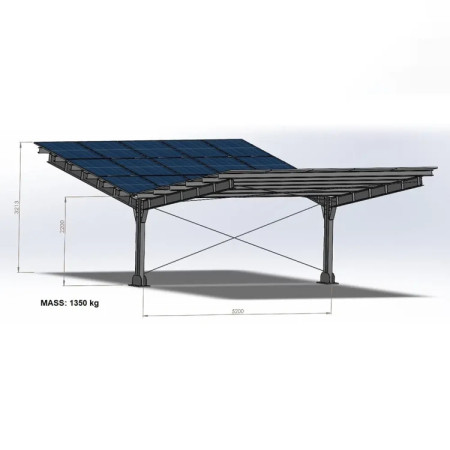

• Dimensions: 11.4 m × 5.2 m

• Intended use: parking for 4 cars

• Number of photovoltaic panels: 30

• Panel dimensions: 1903 × 1134 × 30 mm

• Tilt angle: 10/15 degrees

Material and Corrosion Protection

• Structure material: S275JR hot-rolled steel

• Corrosion protection: hot-dip galvanizing or Magnelis® ZM310 coating

Wind and Snow Zones

• Wind zone: 1, up to 22 m/s

• Snow zones: 1–4, up to 1.6 kN/m²

Warranty

• 1-year warranty on components with Z275 coating.

• 2-year warranty on hot-dip galvanized components.

• 25-year warranty on the Magnelis® coating.

• 25-year warranty on the structure.

Standards

• PN-EN 1090

• PN-EN 1990:2004

• PN-EN 1991-1-3

• PN-EN 1991-1-4

• PN-EN 1933-1-1:2006P

• PN-EN 1993-1-1-3:2008P

• PN-EN 1993-1-5:2008P

The PV Carport T 11.4 m × 5.2 m combines functionality, a durable structure and the potential to harness solar energy. It enables efficient use of parking space, providing room for four vehicles and the opportunity to install a photovoltaic system.
