PV Carport T 11.4 m × 3.3 m

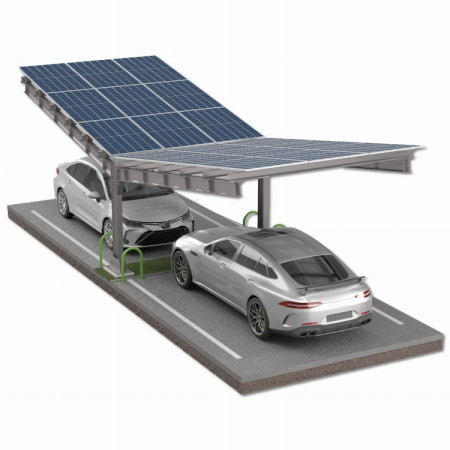

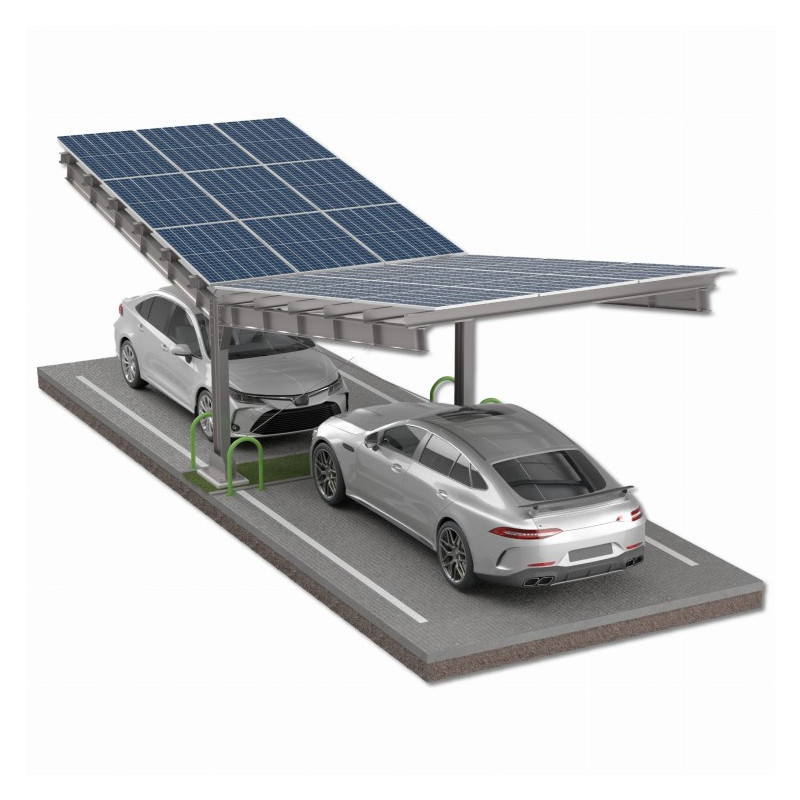

Modern Photovoltaic Carport for Two Cars

The PV Carport T, measuring 11.4 m × 3.3 m, is a practical solution for individuals and businesses looking to make efficient use of parking space while generating electricity from solar energy. The structure accommodates two cars and combines vehicle protection with the possibility of installing a photovoltaic system.

The carport has been designed with durability, functionality and modern aesthetics in mind. It protects vehicles from adverse weather conditions, including intense sunlight, rain and snow, while allowing the parking area to be used for generating green electricity.

The structure is made of S275JR hot-rolled steel and can be protected against corrosion by hot-dip galvanizing or by applying a Magnelis® ZM310 coating. Both the Magnelis® coating and the structure come with a 25-year warranty, making this an attractive option for a long-term investment.

By choosing a photovoltaic carport, you gain a functional parking area and the opportunity to generate electricity from a renewable energy source.

Key Benefits

• Designed for parking 2 cars.

• Capacity for installing 18 photovoltaic panels.

• Compatible with panels measuring 1903 × 1134 × 30 mm.

• Efficient use of parking space for electricity generation.

• Quick and cost-effective installation.

• Structure made of S275JR hot-rolled steel.

• Corrosion protection through hot-dip galvanizing or Magnelis® ZM310 coating.

• Protection for vehicles against weather conditions.

Kit Contents

The kit includes the complete structure, connecting components, bolts and necessary accessories.

Foundations and guttering are not included in the kit.

Technical Specifications

• Model: T

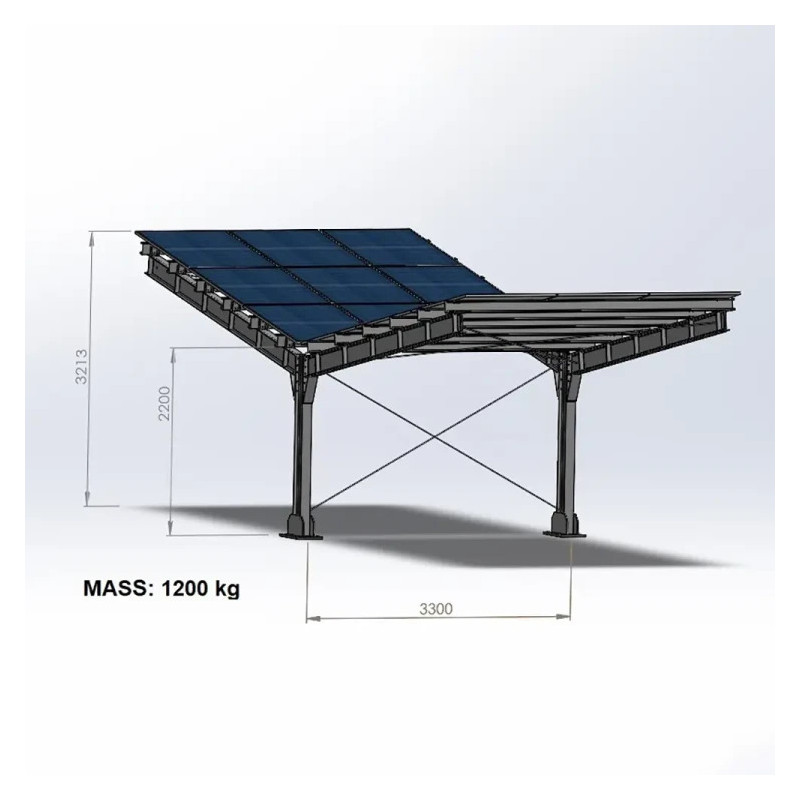

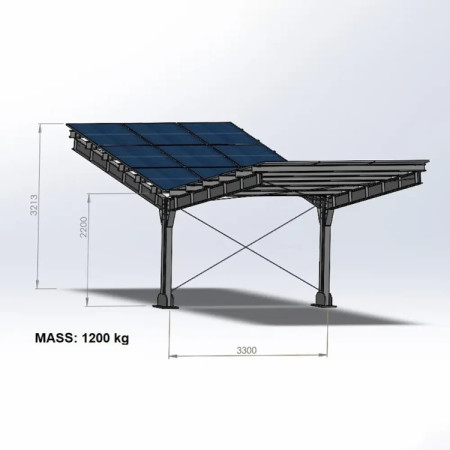

• Carport dimensions: 11.4 m × 3.3 m

• Number of cars: 2

• Number of photovoltaic panels: 18

• Panel dimensions: 1903 × 1134 × 30 mm

• Tilt angle: 10/15 degrees

Material and Corrosion Protection

• Structure material: S275JR hot-rolled steel

• Corrosion protection: hot-dip galvanizing or Magnelis® ZM310 coating

Wind and Snow Zones

• Wind zone: 1, up to 22 m/s

• Snow zones: 1–4, up to 1.6 kN/m²

Warranty

• 1-year warranty on components with Z275 coating.

• 2-year warranty on hot-dip galvanized components.

• 25-year warranty on the Magnelis® coating.

• 25-year warranty on the structure.

Applicable Standards

• PN-EN 1090

• PN-EN 1990:2004

• PN-EN 1991-1-3

• PN-EN 1991-1-4

• PN-EN 1933-1-1:2006P

• PN-EN 1993-1-1-3:2008P

• PN-EN 1993-1-5:2008P

The PV Carport T 11.4 m × 3.3 m combines practical parking space, vehicle protection and the potential to harness solar energy. Its robust structure and corrosion protection make it a suitable solution for modern parking areas.
