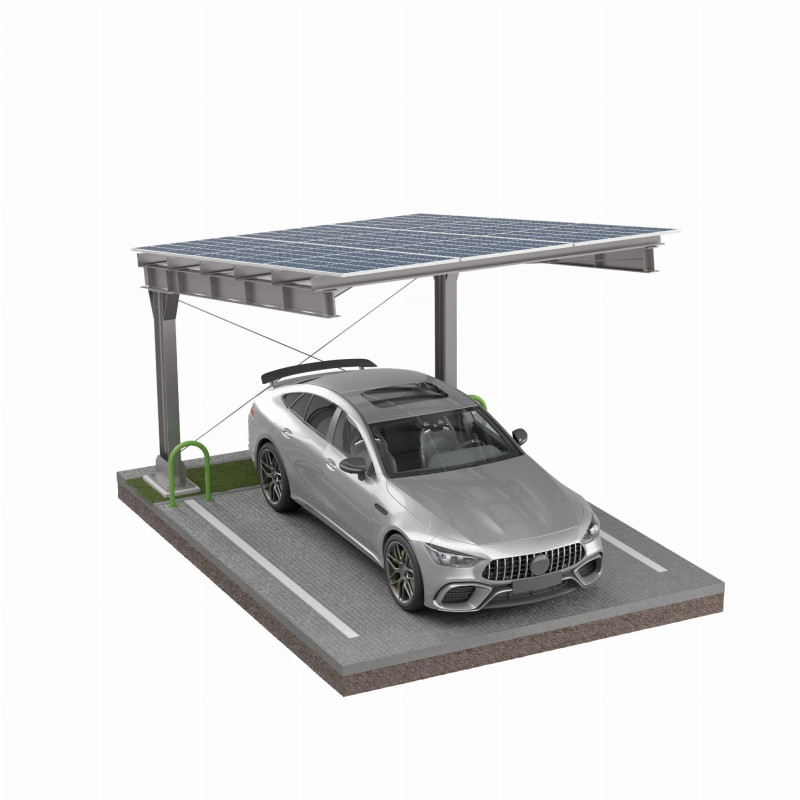

VICA Photovoltaic Carport – L 5.7 × 3.3 m for 1 Car

A modern photovoltaic carport that combines vehicle protection with the possibility of generating electricity.

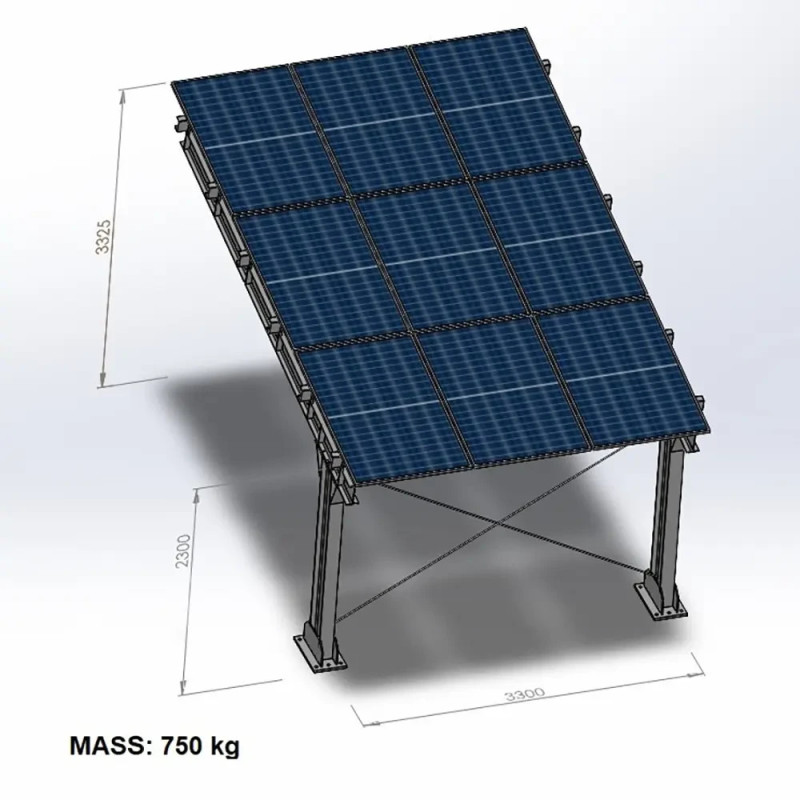

The 5.7 × 3.3 m photovoltaic carport is a practical solution for making efficient use of parking space. Designed for one vehicle, the structure accommodates 9 photovoltaic panels, allowing the parking area to serve as a source of solar energy.

The roof protects the vehicle from direct sunlight, rain and snow. At the same time, it combines everyday practicality with an investment in renewable energy.

The structure is made of S275JR structural steel, protected with either hot-dip galvanising or a Magnelis® ZM310 coating. These anti-corrosion treatments improve the resistance of the components to external conditions. The applicable warranty depends on the selected version.

Key Benefits

• Solar energy generation – accommodates 9 photovoltaic panels.

• Compatible with PV panels – designed for modules measuring 1903 × 1134 × 30 mm.

• Durable steel structure – manufactured from S275JR hot-rolled steel.

• Anti-corrosion protection – available with hot-dip galvanising or Magnelis® ZM310 coating.

• Efficient installation – a well-designed structure that allows for quick and cost-effective assembly.

• Vehicle protection – a roof that reduces direct exposure to sunlight and precipitation.

• 25-year warranty on the structure and Magnelis® coating, subject to the manufacturer's warranty terms.

Kit Contents

The kit includes the complete structure, together with mounting components, bolts, connectors and the necessary accessories.

Foundations and guttering are not included in the kit.

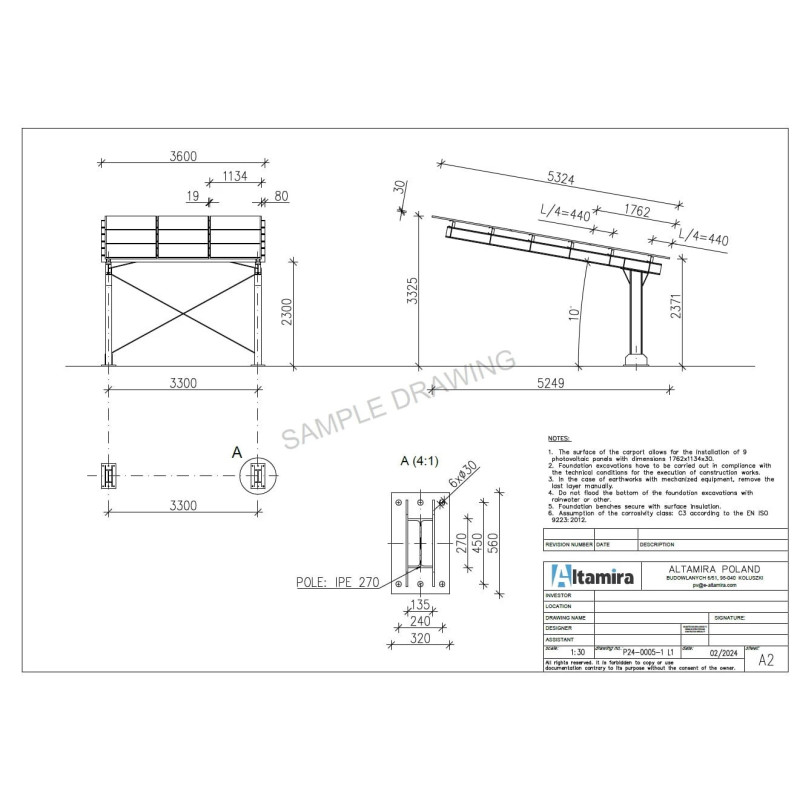

Technical Specifications

Material and Anti-Corrosion Protection

The carport is manufactured from S275JR hot-rolled steel. Depending on the selected version, the components can be protected by hot-dip galvanising or a Magnelis® ZM310 coating.

Both solutions are designed to protect the steel components against corrosion and improve their durability during outdoor use.

Warranty Terms

• Components with a Z275 coating – 1-year warranty.

• Hot-dip galvanised components – 2-year warranty.

• Magnelis® coating – 25-year warranty.

• Structure – 25-year warranty.

The detailed warranty terms depend on the selected protective coating and the conditions specified by the manufacturer.

Standard Wind and Snow Load Zones

The structure is specified for the following zone parameters:

• Wind zone: Zone 1, up to 22 m/s.

• Snow zones: Zones 1–4, up to 1.6 kN/m².

Before ordering, verify that these parameters are suitable for the intended installation site. For locations with particular wind or snow conditions, an assessment by a structural designer is recommended.

Applicable Standards

The structure is described with reference to the following standards:

• PN-EN 1090

• PN-EN 1990:2004

• PN-EN 1991-1-3

• PN-EN 1991-1-4

• PN-EN 1933-1-1:2006P

• PN-EN 1993-1-1-3:2008P

• PN-EN 1993-1-5:2008P

Photovoltaic Carport – Practical Shelter and Solar Energy

The L model, measuring 5.7 × 3.3 m, is designed for customers who want to combine convenient parking with the option of installing a photovoltaic system. Its sturdy steel structure, choice of anti-corrosion protection and optional trapezoidal sheet-metal roofing allow the carport to be adapted to the needs of the project.
