Bridge for trapezoidal sheet metal roofs H40 with EPDM

Trapezoidal Bridge – Aluminium 6060 | H-40 | Lengths: 330 mm / 400 mm | EPDM

🔧 Product Description:

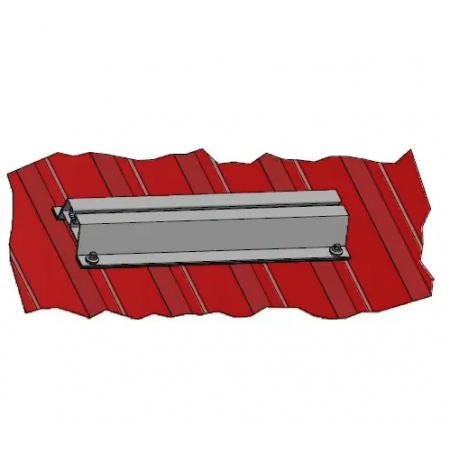

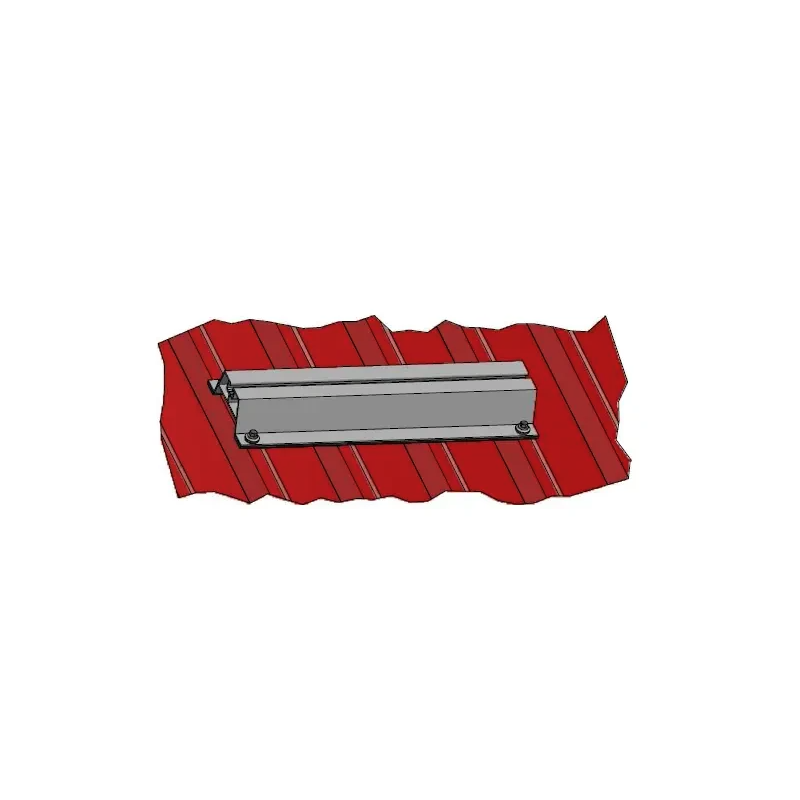

The trapezoidal bridge (H-40 aluminium profile) is a practical and durable solution for mounting photovoltaic modules on trapezoidal sheet metal roofs. Its design enables direct PV panel installation without additional mounting rails.

☀️ Applications:

• Mounting photovoltaic panels on trapezoidal metal sheet roofs

• Direct attachment of PV modules to roof surfaces

• Use on industrial, agricultural, and residential buildings

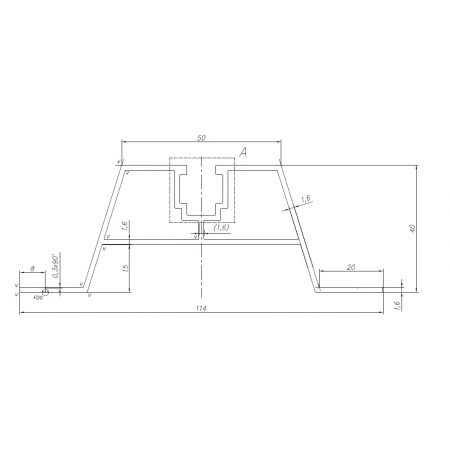

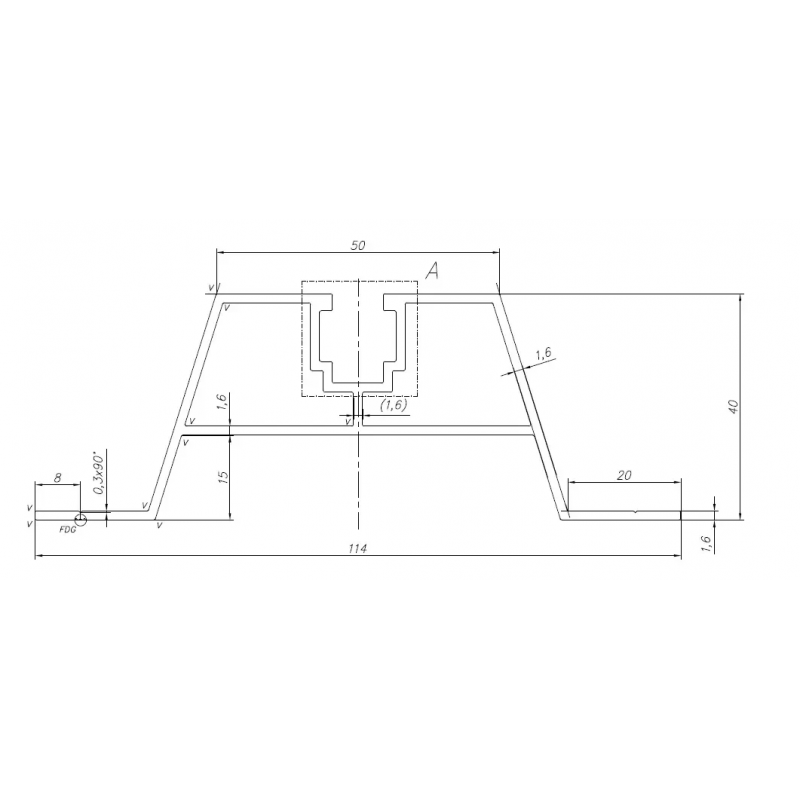

⚙️ Technical Specifications:
Material: Aluminium EN AW-6060 (AlMgSi)

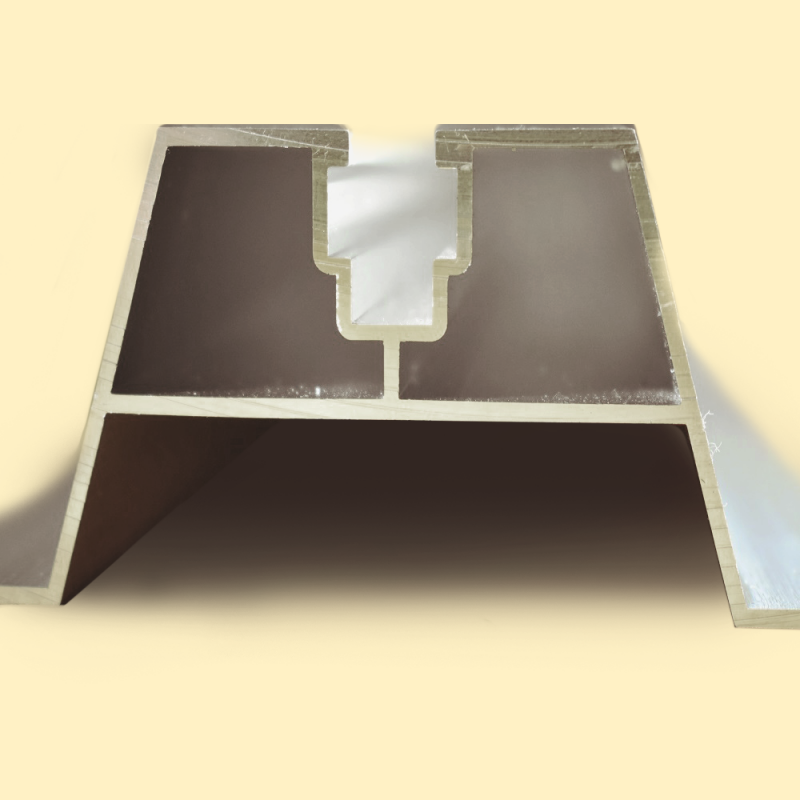

Profile height: 40 mm
Available lengths: 330 mm, 400 mm
Base width: 30 mm

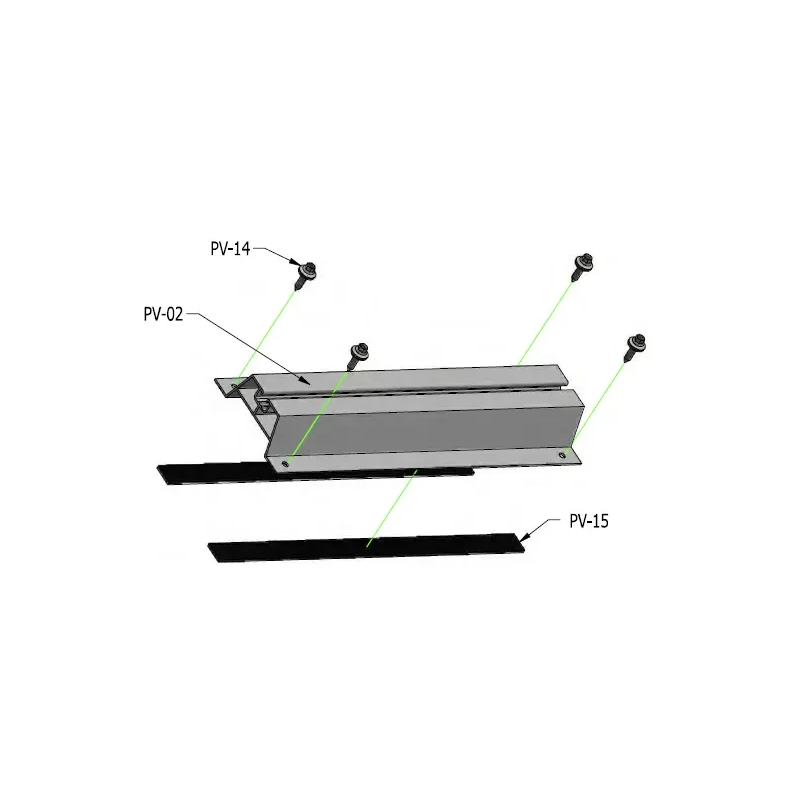

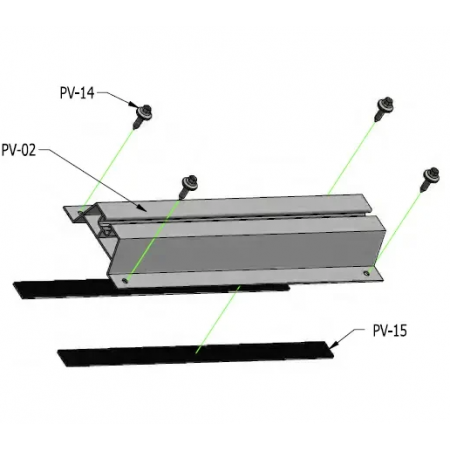

Seal: EPDM tape included – provides waterproof sealing
Hole drilling: To be performed on-site during installation

✅ Features & Benefits:

• 40 mm profile height allows for optimal airflow under panels for better cooling

• Lightweight yet strong 6060 aluminium structure

• Corrosion-resistant – perfect for outdoor applications

• Easy installation – custom lengths available on request

• Durable and reliable even in harsh weather conditions

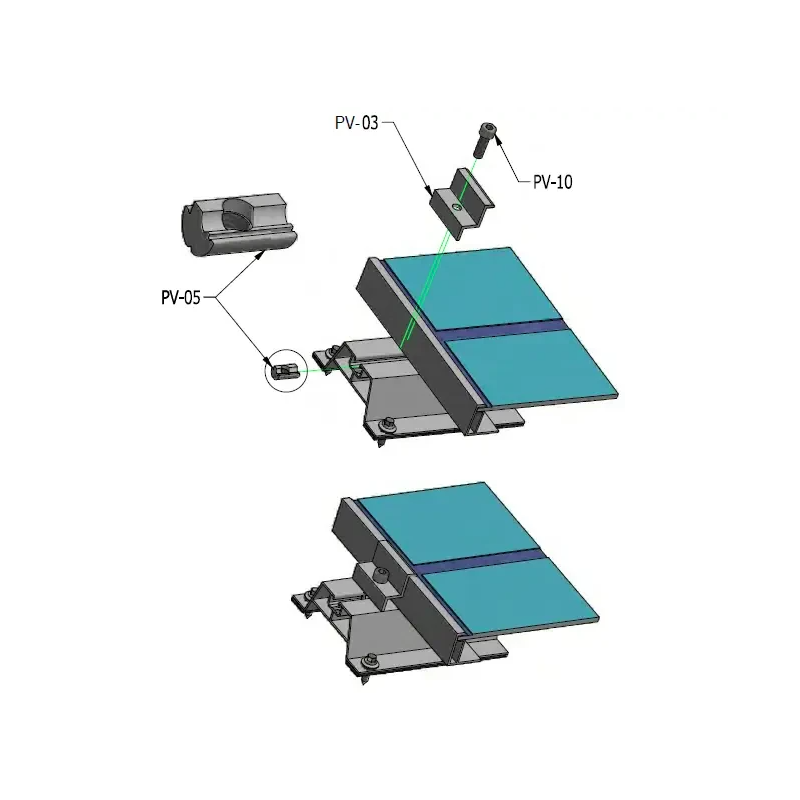

🛠️ Recommended Accessories:

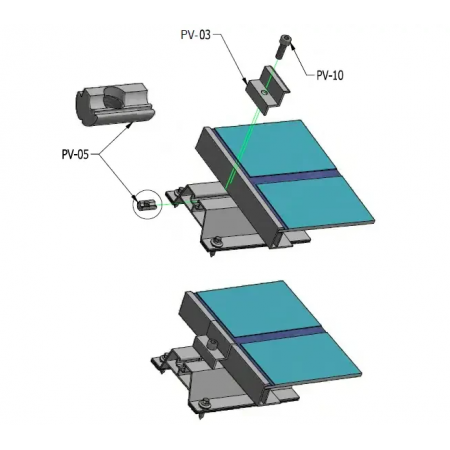

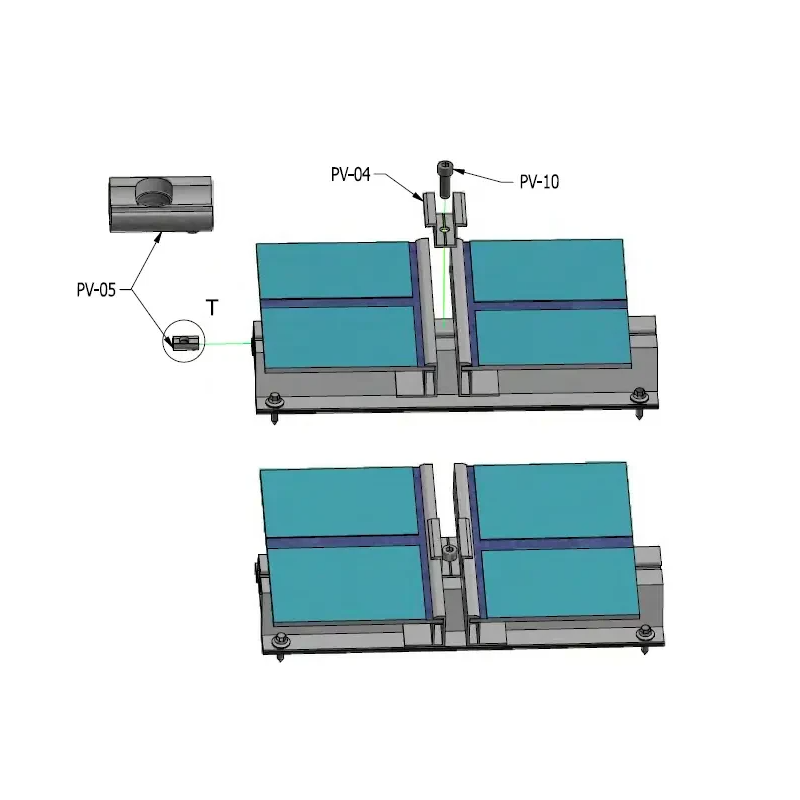

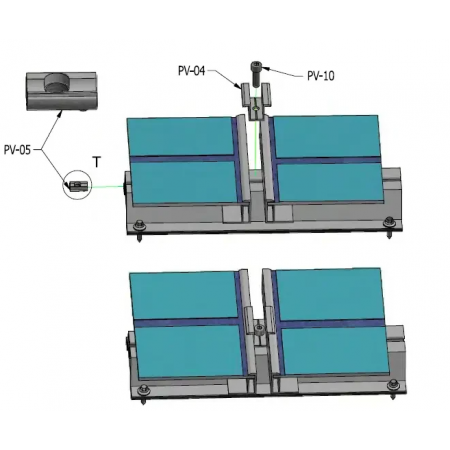

• Mid and end clamps for module fixing

• Hexagon socket head screw (DIN 912) and square nuts (DIN 557)

🟡 Summary:
The aluminium 6060 trapezoidal bridge is an effective and cost-efficient mounting solution for PV modules on trapezoidal metal roofs. Its weather resistance, ease of installation, and compatibility with common accessories make it a dependable choice for any solar installation.
