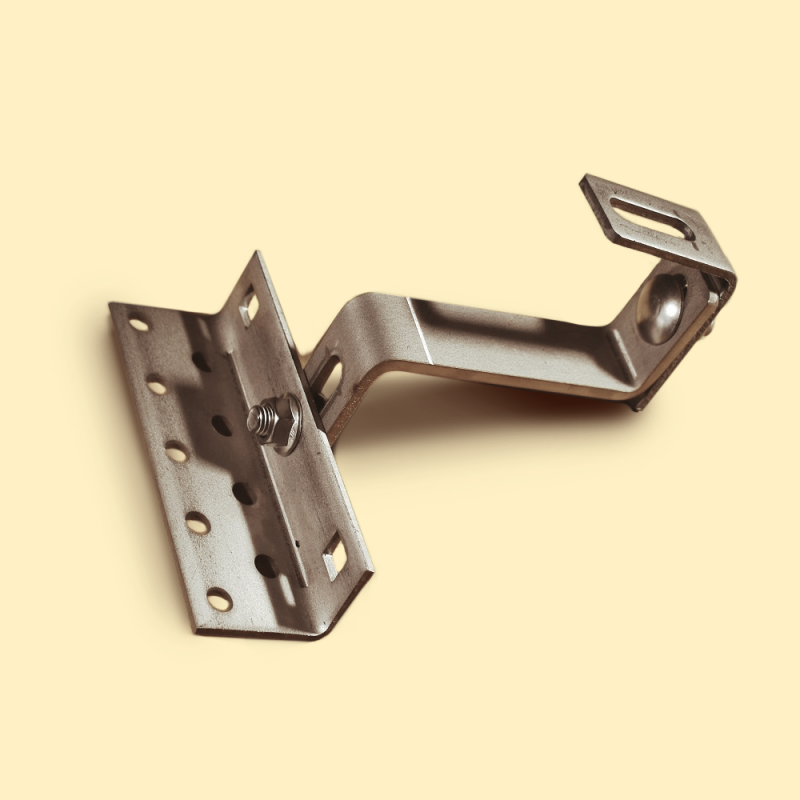

VARIO L145 adjustable hook grade 1.4016 (KBH-PV-08)

VARIO Roof Hook – Double Adjustable
Stainless Steel 1.4016 (H17) | For Ceramic and Concrete Roof Tiles | Extended Adjustment Range

Flexible solution where standard hooks fall short!

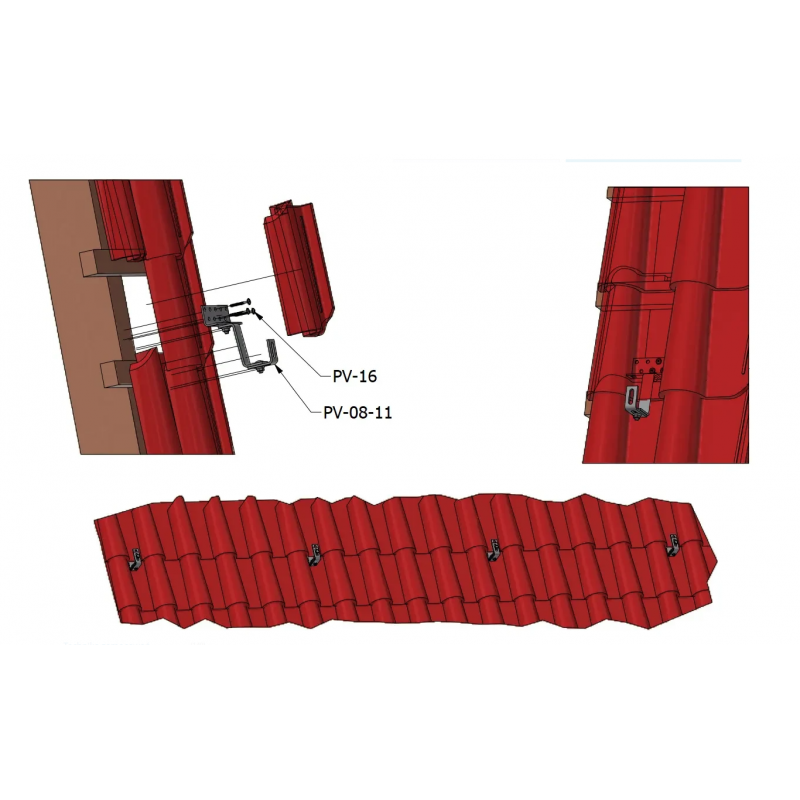

The VARIO roof hook is an advanced bracket designed for mounting construction rails for photovoltaic panels on roofs covered with ceramic or concrete tiles. Thanks to its dual adjustment points, it is ideal for uneven roofs where traditional hooks are too short or imprecise.

Key Features:
Double adjustment – allows precise adaptation to the roof’s shape and slope
Suitable for ceramic and concrete roof tiles
Strong attachment to the lower channel of the mounting rail using a bolt
Durable and resistant – made of stainless steel 1.4016 (H17), grade 430
Ideal for challenging roofs – where standard hooks are not sufficient

Technical Specifications:
Material: Stainless steel 1.4016 (H17)
Flat bar: 30x4 mm or 30x5 mm
Rods: Diameter 9 mm
Profile: Bean-shaped slot for M10 bolt

Properties of 1.4016 (H17) steel:
Ferritic stainless steel (magnetic)
Resistant to corrosion, steam, moisture, and mild acids
Good flexibility and stress resistance
Not recommended for saltwater or highly acidic environments

Why Choose VARIO?
Extended adjustment range for maximum installation precision
Compatible with popular mounting rails
Long-lasting durability – maintains its properties even in harsh outdoor conditions

VARIO Hook – Adjustment You Can Trust.
The ideal choice for demanding roofs and professional PV installations.
