Surge protection device SPD Ex9UEP, type II for ungrounded PV systems (KBH-PV-200)

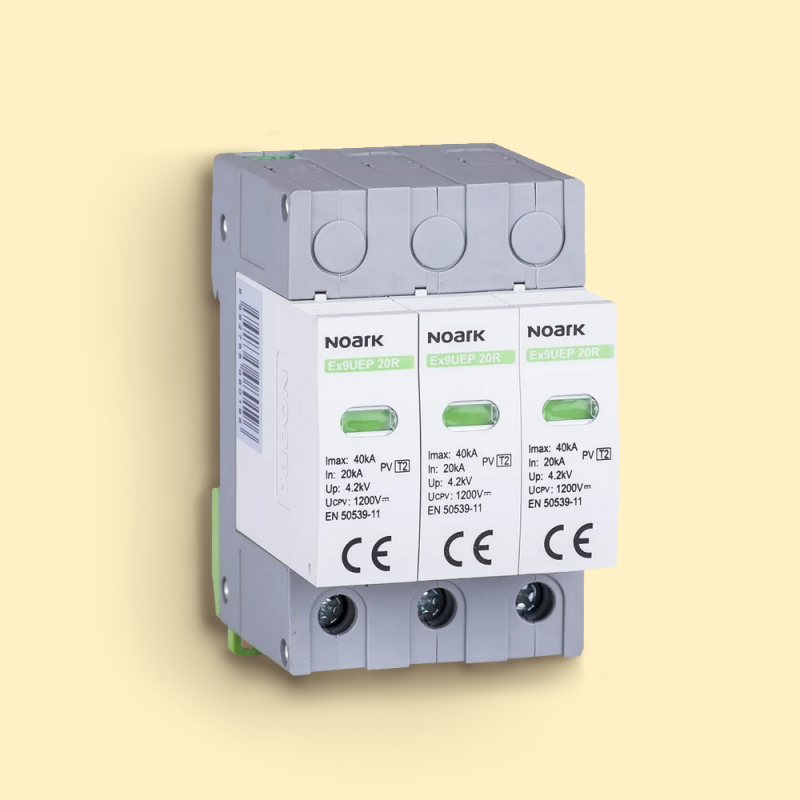

Surge Protector SPD Ex9UEP, Type II, 3 Module Widths, for Ungrounded PV Systems

The surge protector SPD Ex9UEP is an advanced Type II surge protection device optimized to handle voltage surges up to 1200 V DC. Specifically designed for ungrounded PV systems, this protector provides effective protection against severe voltage surges, lightning strikes, and other electrical disturbances that may occur in photovoltaic installations. With its compact design consisting of 3 module widths, it easily integrates into the configuration of a PV system.

The SPD surge protectors Ex9UEP DC are ideal for photovoltaic applications, meeting the EN 50539-11 standards for PV Class T2 (Class II, Type 2, C). The front panel is equipped with a status display window for monitoring the device status, and a remote signal connection allows for remote control. The module plug construction enables easy module replacement without the need to switch off the device.

General Parameters:

Direct Current: Surge protector for PV systems

Surge Protection Class: PV T2 (Class II, Type 2, C)

Standard Compliance: EN 50539-11

Rated Discharge Current: 20 kA (8/20 μs) per path

Maximum Discharge Current (Imax): 40 kA (8/20 μs)

Maximum Continuous Operating Voltage (UCPV): from 600 to 1500 V Direct Current

For grounded and ungrounded PV systems

Module plug construction with status display

Optional remote signal connection

Mechanical Parameters:

Device Width: 17.5 mm (per module)

Device Height: 83 mm (89 mm with rail clip)

Frame Size: 45 mm

Mounting Type: Fixed

Mounting: Easy mounting on a 35 mm mounting rail (DIN)

Mounting Position: Freely selectable

Protection Class: IP40, Terminals IP20

Terminals: Spring-cage, M5 screws

Terminal Capacity: 2.5 - 25 mm²

Terminal Tightening Torque: 2 - 3.5 Nm

Remote signal connection terminal capacity: 0.14 - 1.5 mm²

Location: Indoor

Installation Class: III

Pollution Degree: 2

Availability: Not available

Ambient Temperature: -40 to +70 °C

Altitude: ≤ 2000 m

Relative Humidity: 5 - 95%

Weight (per mast): 0.12 kg

Available Configuration:

Voltage Range: 1000 V Direct Current

Type: II

Number of Modules: 3

Voltage Range: 1200 V Direct Current

Type: II

Number of Modules: 3
